NitroGEN Generator
Our nitrogen generators use the PSA technology and the ability of the Carbon Molecular Sieve to adsorb dioxygen molecules to produce nitrogen from compressed air.

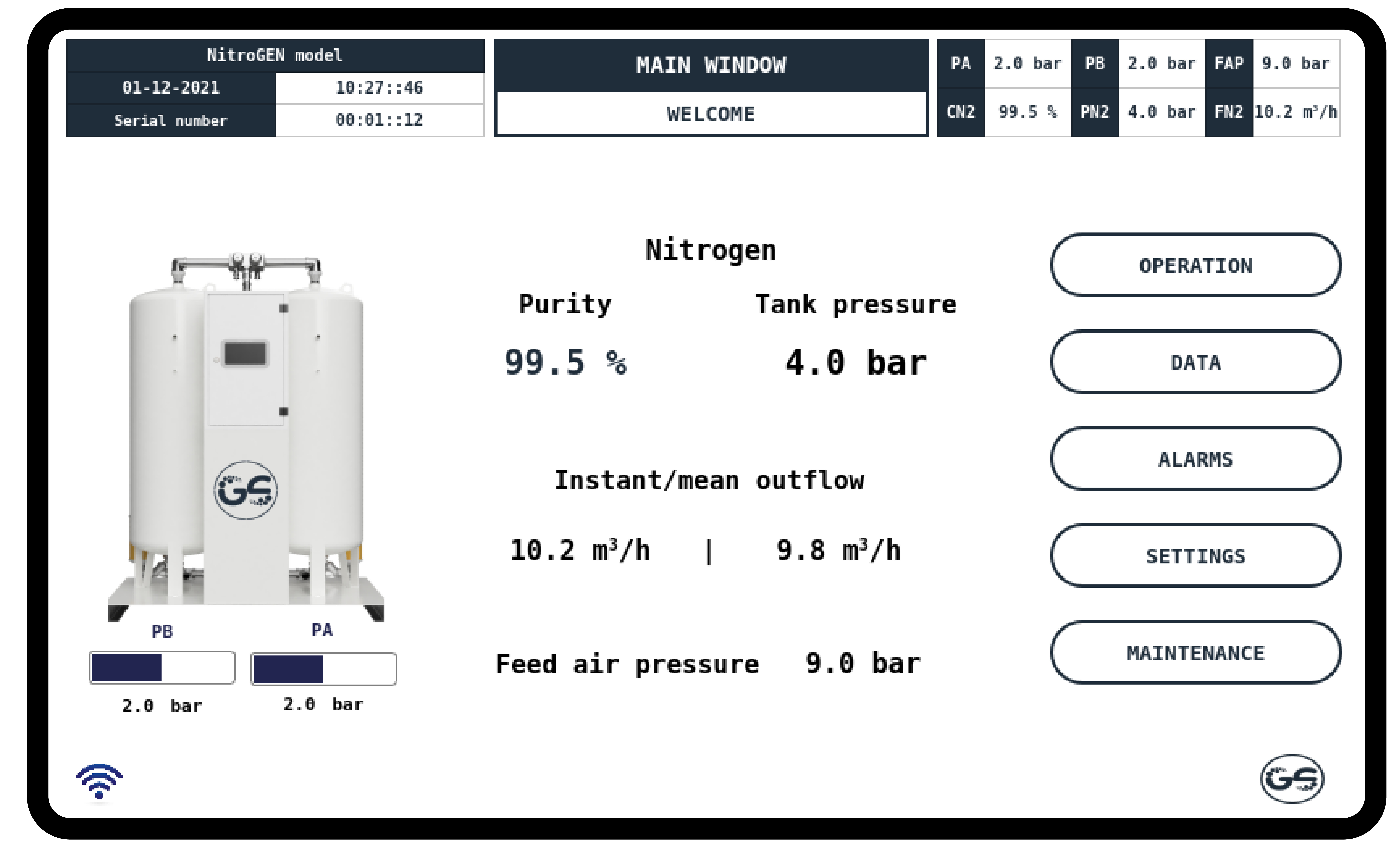

All our generators are equipped with a 7″ user-friendly touchscreen and the possibility to control the generator remotely for commissioning or to perform maintenance activities.
Standards uses of nitrogen of purity 99.5% are linked to food packaging, fish farming etc.
GAZ SYSTEMES provides a wide range of NitroGEN from 2 to 300 m3/h of nitrogen at 99.5% purity. Do not hesitate to contact us if you are interested in producing your own nitrogen on-site.
Screen
Nitrogen purity 99.5%
| Available models | Nitrogen flow N2 | Weight |
|---|---|---|
| NitroGEN+ 03 | 1.99 m3/h | 110 kg |
| NitroGEN+ 05 | 3.4 m3/h | 130 kg |
| NitroGEN+ 10 | 5.8 m3/h | 190 kg |
| NitroGEN+ 15 | 9.2 m3/h | 230 kg |
| NitroGEN+ 20 | 11.5 m3/h | 295 kg |
| NitroGEN+ 35 | 25.6 m3/h | 585 kg |
| NitroGEN+ 50 | 33.2 m3/h | 740 kg |
| NitroGEN+ 65 | 42.6 m3/h | 835 kg |
| NitroGEN+ 100 | 73.4 m3/h | 1260 kg |
| NitroGEN+ 150 | 98.7 m3/h | 1590 kg |
| NitroGEN+ 200 | 134.8 m3/h | 1905 kg |
| NitroGEN+ 250 | 165.1 m3/h | 2430 kg |
| NitroGEN+ 300 | 224.8 m3/h | 2810 kg |
| NitroGEN+ 400 | 293.6 m3/h | 3640 kg |
